ناقل الحزام DTII

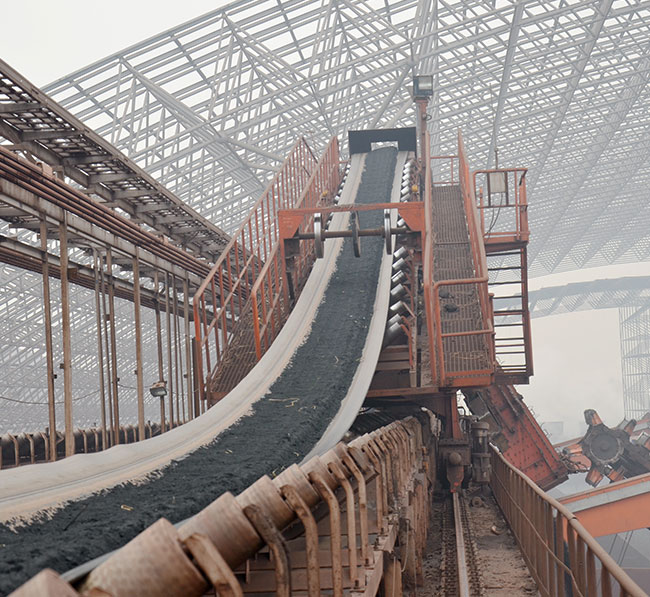

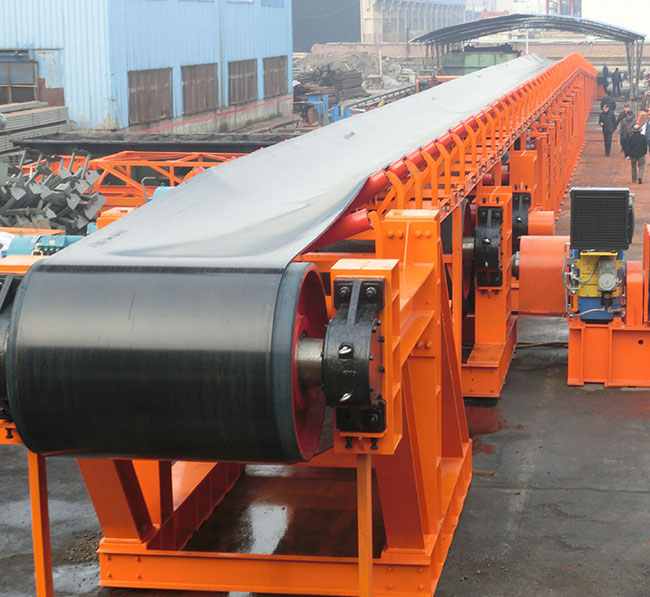

DT-II type belt conveyor is an upgraded product improved on the basis of TD75 series, it is apply for cement plant, power plant etc long distance bulk material handling. Comparing with TD75 type, DTII conveyor shows considerable improvements not only in the aspects of materials, processing and manufacturing precision, but also in the aspects of conveying capacity and reliability etc.

Usage

We have been successfully supplying bulk material handling systems and plants in worldwide. Worth group has substantially shaped technical development in the conveying technology fields, our company have many national patents : belt conveyor smart adjustable deviation device, non-power flutter sweeper of large angle belt conveyor, fixed unloading device, smart splitting and unloading device and so on.

For the long distances, large heights and capacity, Worth group will offer whole system solutions which are as individual as your requirements in the conveying technology field. We always work with you to identify the right solution to transport your products quickly, safely and efficiently.


Characteristics

1. DTII type belt conveyors feature as: simple structure, low operation cost, low working noise, running safely and stably, clean and highly efficient.

2. DTII type belt conveyor systems are customized to meet the specific demands of the client's needs, the type and volume of material to be handled, and the existing topography of the route,as well as the prevailing climatic conditions.

3. The single length of conveyor can reach kilometers or even tens of kilometers; belt width ranges from 500mm to 2800mm.

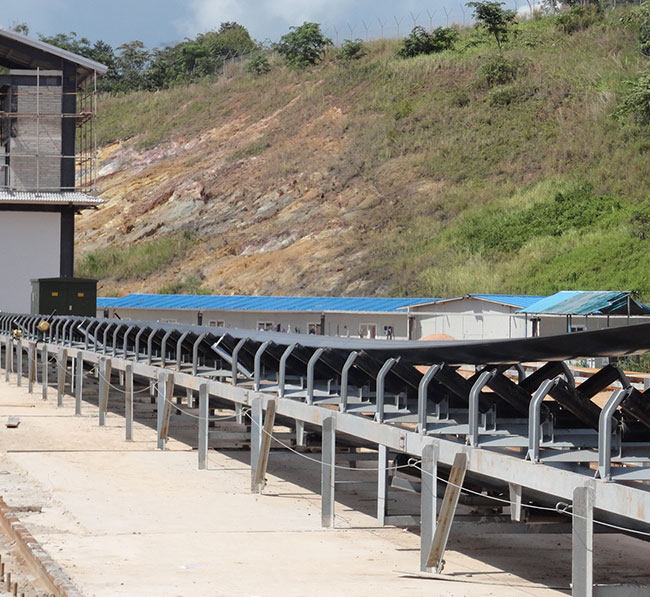

4. Long-distance conveyors are used to continuously convey bulk materials through long distance, with large inclined angles and in complex terrain. It’s the most effective means of transporting bulk materials, and costs are often lower than truck or rail transportation.


PERFORMANCE PARAMETERS

DTII type belt conveyor technical parameters:


Belt widthB(mm)50065080010001200140016001800200022002400
Belt speed(㎡/h)Convey quantity Q(t/s)
0.869127198324-------
1.087159248405593825-----
1.251081983105077421032-----
1.601392543976499511321-----
2.0017431849681111881652218627953470--
2.50217397620101414862065273334944338--
3.15--87112781872260234444403546668438289
4.00---162223773304437355916941869010526
4.50----26743718492062917808977611842
5.00----297141305466698986761086313158
5.60------6122782997171216614737
6.50-------9083112771412017104
