المضخة الكيماوية

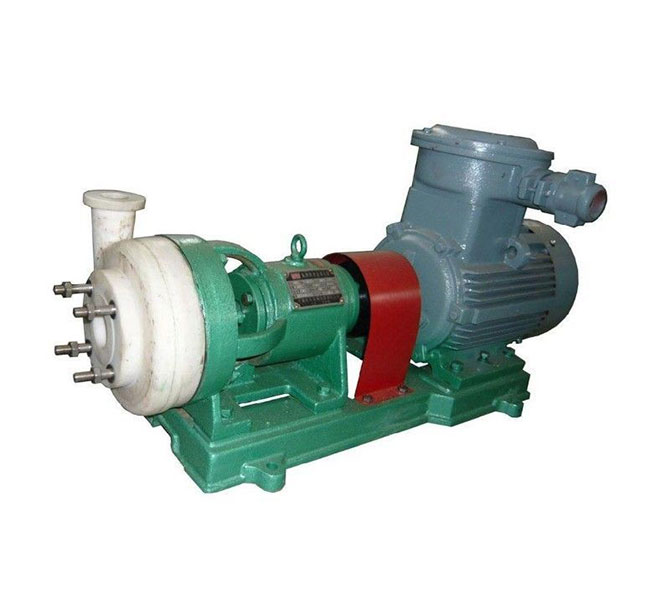

المضخة المقاومة للتآكل من سبائك الفلوروبلاستك SLSFSB

Pump Type: Centrifugal

Capacity: 1.5-100m³/h

Head: 10-80m

Size: Suction DN25-DN100,Discharge DN20-DN80

Original: China


DESCRIPTION

SLSFSB fluoroplastic alloy corrosion pump, can be in - 80 ℃ to 150 ℃ temperature conditions, long conveying any concentration of all kinds of acid, alkali, salt and other corrosive medium, strong oxidizer, the shell parts and over current are all made from F46 fluorine alloy, with the advantages of many kinds of fluorine plastic, it has strong corrosion resistance, and has high mechanical strength, not aging, no toxin decomposition.The pump has high mechanical strength, reasonable design, compact structure, reliable performance, convenient operation and maintenance, smooth flow passage, high efficiency and energy saving.


APPLICATIONS

SLSFSB fluoroplastic alloy corrosion resistant pump is suitable for conveying liquid in petroleum, chemical industry, pharmaceutical industry, pesticide, pickling, dye, paint, smelting, paper-making, electroplating, food and other industries.

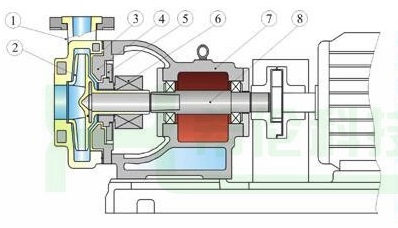

CONSTRUCTION DRAWING

SLSFSB TSF Pump

1. Frame Plate  2.Impeller  3.Seal Ring  4.Cover Plate  5.Seal Gland   6.Mechanical Seal  7.Shaft Box  8.Shaft

PERFORMANCE PARAMETERS

TypeCapacity/Q(m3/h)Head  (m)Speed/n(r/min)Max Efficiency η(%)Max Power (kW)Size(mm)
SuctionDischarge
25SLSFSB1.5-3.610-182900291.52520
40SLSFSB5-1015-502900427.54032
50SLSFSB15-2920-63290051115040
65SLSFSB29-5032-6429005718.56550
80SLSFSB5020-80290069378050
100SLSFSB10032-502900703010080
