الحزام الناقل من الحبل الفولاذي

Usage: Steel cord conveyor belts are suitable for high strength, long distance, and heavy load transportation of materials, which are widely used in coalmines, mines, ports, metallurgy, electricity, chemical industries, etc.

Characteristics

1. High tensile strength: The belts are suitable for large span, long distance transportation of materials.

2. Small elongation in use: The belts need only a very short take-up stroke distance.

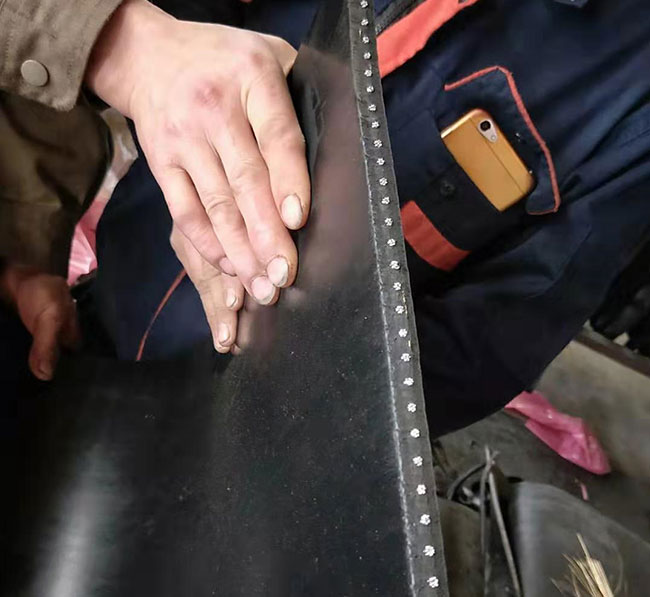

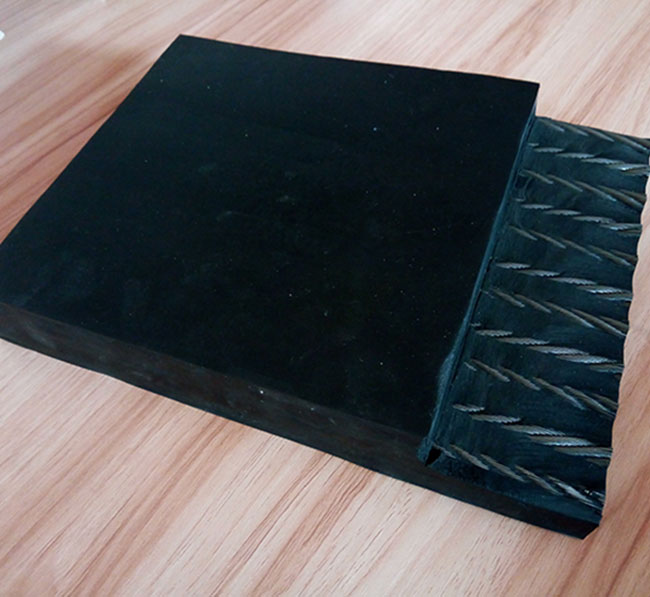

3. Small diameter of drive pulley: The carcass has a layer of longitudinally arranged steel cords as its skeleton,and thus is resistant to flex fatigue. Therefore, drive pulley of smaller diameter can be used to make the equipment smaller.

4. High adhesion between rubber and steel cord: The steel cords are coated with zinc on their surface, and also the rubber used has the property of good adhesion with steel cords. Therefore, the rubber is tightly adhered to the steel cords and is resistant to shock and difficult to drop, so the rubber belts are long in service life.

5. Even tension of steel cords: Out of our advanced techniques in manufacturing, the steel cords are very evenly arranged and have the same tension, so the belts are well balanced in running and difficult to run deviation.

6. Good troughability: As the carcass has no transverse skeleton, it is easy to form a deep trough, so the belts can load more materials and prevent the materials from escaping.

7. Good troughability: As the belt body has no transverse skeleton, it is easy to from a deep trough, so the belts can load more materials and prevent the materials from escaping.

8. Inspection of the belt with X-rays: Users can take X-rays to inspect damages of the skeleton steel cords on the conveyor machines to prevent accidents from happening.




Standard Specifications

Belt strength
(st-No.)
Cord diam d
(mm)

Cord structure
Pitch P
(mm)
Standard working
tension(N/mm)
Standard rubber cover
thicknes t1t2(mm)
Belt weight
(Kg/㎡)
Min.Pulley
diam.(mm)
Cord strength
KN/piece
ST-6303.06*7+1WS10905*520.08006.93
ST-8003.56*7+1WS101105*520.68008.8
ST-10004.06*7+1WS121406*624.780013.2
ST-12504.56*7+1WS121756*625.480016.5
ST-16005.06*19+1WS122256*626.0100021.12
ST-20006.06*19+1WS122858*630.0100026.4
ST-25007.56*19W+1WS153558*632.2125041.25
ST-31508.16*19W+1WS154508*835.7140051.98
ST-40009.16*19W+1WS175708*837.8160074.8
ST-45009.76*19W+1WS166458*838.7180079.2
ST-500010.96*19W+1WS177158.5*8.541.9180093.5
ST-540011.36*19W+1WS177609*943.92000101
ST-630012.36*19W+1WS1890010*1048.32000124.74


Number of steel cords

Belt width(mm)ST600ST800ST1000ST1250ST1600ST2000ST2500ST3150ST4000ST4500ST5000ST5400ST6300
8007575636363635050




100095957979797964645660565652
12001131139494949476766872686863
140013313311111111111189897984797974
16001511511261261261261011019196919185
1800
17114314314314311411410310710310396
2000

159159159159128128114120114114107
2200




176141141125133125125118
2400




193155155137146137137129
