مضخة الصرف الصحي

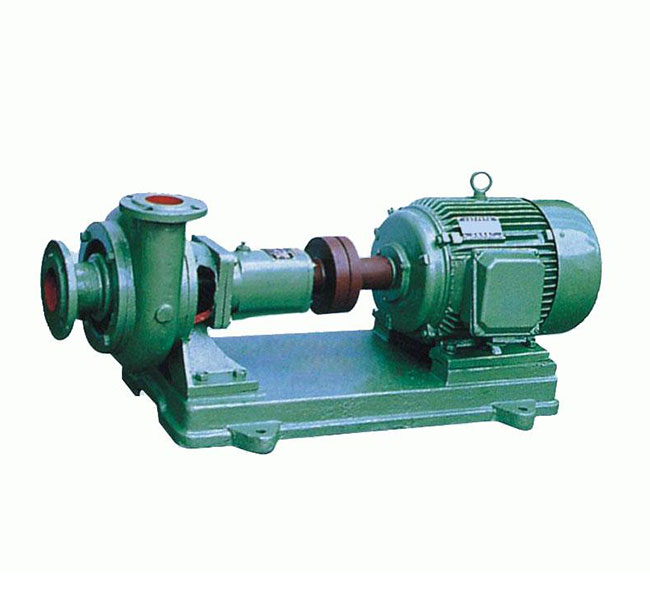

مضخة الصرف الصحي الطاردة للمركز الأفقية SLSPW

Pump Type: Centrifugal

Capacity: 36-700m³/h

Head: 8.5-49m

Size: Suction DN80-DN250,Discharge DN70-DN200

Original: China


DESCRIPTION

SLSPW horizontal centrifugal sewage pump is a horizontal, single-stage, single-suction cantilever centrifugal sewage pump, which is mainly composed of pump cover, pump case, impeller, shaft seal, shaft and other parts. It is the design and development of domestic excellent hydraulic model selected by our company in conjunction with domestic pump experts.It is suitable for transporting the liquid with fiber or other suspended matter below 80℃ to the city, industrial and mining enterprises for discharging sewage and excrement.SLSPWF stainless steel acid resistant sewage pump is a derivative product of SLSPW pump. It is made of stainless steel and has the same structure as SLSPW.


APPLICATIONS

SLSPW horizontal centrifugal sewage pump is suitable for transporting the liquid with fiber or other suspended matter below 80℃, which is used for discharging sewage,industrial and mining enterprises.

SLSPWF stainless steel acid resistant sewage pump is suitable for discharge of acidic, alkaline or other corrosive sewage, for the chemical industry in the transport of chemical slurry, liquid temperature within 80℃.

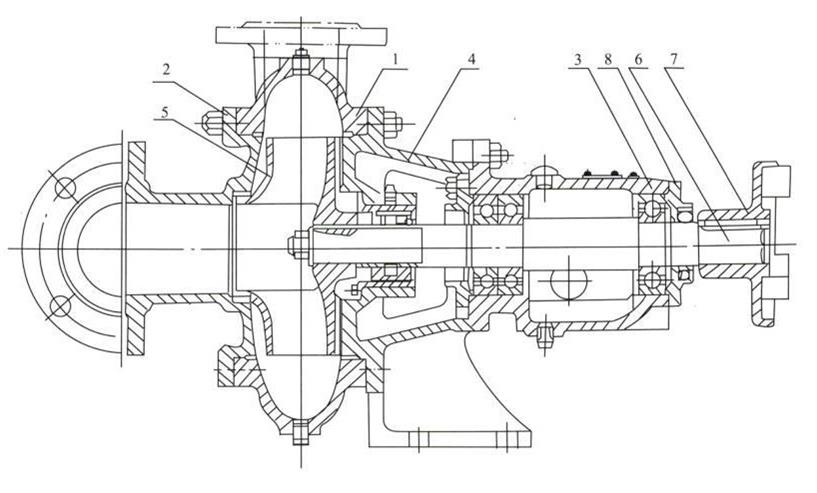

CONSTRUCTION DRAWING

SLSPW Horizontal Sewage Pump

1. Frame Plate  2. Cover Plate  3. Bearing House  4. Shaft Sealing

5. Impeller  6. Shaft  7. Shaft Coupling  8. Bearing Gland


PERFORMANCE PARAMETERS

TypeCapacity/Q(m3/h)Head  (m)Speed/n(r/min)Max Efficiency η(%)Max Power (kW)Size(mm)
SuctionDischarge
2.5SLSPW(F)36-1088.5-49294062228070
4SLSPW(F)72-18010.5-281460/9606230100100
6SLSPW(F)200-45012-301450/9806755200150
8SLSPW(F)350-7009-32980/7407675250200
