مضخة عجائن

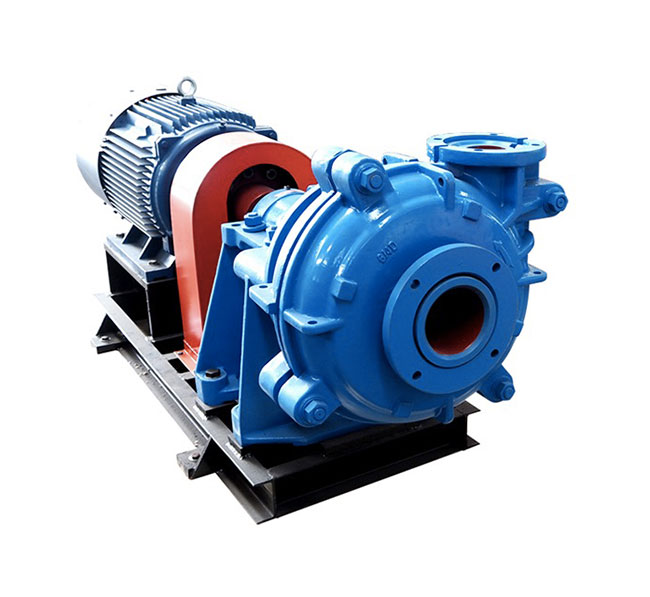

مضخة عجائن طرد مركزي أفقي SLSAH(R)

Pump Type: Single-Stage Centrifugal Slurry Pump

Capacity: 3.6-2455m³/h

Head: 5-118m

Size: Suction DN38-DN356, Discharge DN25-DN305

Original: China


DESCRIPTION

SLSAH type horizontal centrifugal slurry pump is a single-stage single-suction, cantilever centrifugal slurry pump, by impeller, double volute pump body, pump shaft, bearing, shaft seal and other main components.This series of pumps are horizontal, vertical, middle form, double pump shell structure slurry pump.It is our company's joint domestic pump experts choose domestic excellent hydraulic model design and development.The pump is energy-saving, long service life, light weight, wide range of performance, good cavitation performance, reasonable structure, reliable operation, easy maintenance, the outlet can rotate eight different positions according to 45° interval.

SLSAHR is a derivative product, and the pump overcurrent component is rubber material.Its pump body, pump cover and transmission part and so on with SLSAH type pump universal.


APPLICATIONS

SLSAH horizontal centrifugal slurry pump is suitable for electric power, metallurgy, coal, building materials and other industries. The treatment medium is abrasive or corrosive slurry containing solid particles, sand and gravel, slurry and slurry with large solid particles, as well as power plant ash slag, etc..The pump can be used in series.

SLSAHR is suitable for conveying fine particles and corrosive slurry.

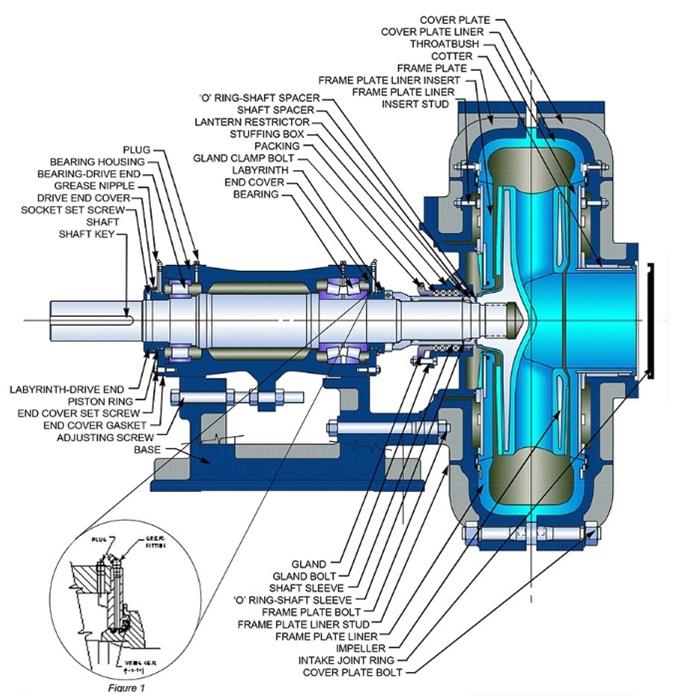

CONSTRUCTION DRAWING

SLSAH(R) Horizontal Slurry Pump

PERFORMANCE PARAMETERS

TypeCapacity/Q(m3/h)Head (m)Speed (r/min)Max Efficiency η(%)Max Power (kw)Size(mm)
SuctionDischarge
1.5/1B-AH(R)3.6-21.65-691200-380040153825
2/1.5B-AH(R)7.2-497-611200-320049155138
3/2C-AH(R)25.2-8915.8-621300-270056307651
4/3C-AH(R)9.6-1589.6-441000-2000703010276
4/3D-AH(R)28.8-158.47.6-441000-2000744510276
6/4D-AH(R)79.2-35618.9-49.5980-14806855152102
6/4E-AH(R)93.6-36021.7-561050-160068115152102
8/6E-AH(R)126-64810-58500-110072115203152
8/6R-AH(R)208.8-64832.8-62900-114072160203152
6/4X-AH108-38528.4-631150-160068115152102
8/6X-AH126-127410-118500-110063560203152
10/8X-AH216-105111.5-42.5400-70068320254203
12/10X-AH316-162010.2-54350-73065380305254
10/8ST-AH216-105111.5-46400-73071245254203
12/10ST-AH381.6-162010.2-54.3350-73080380305254
14/12ST-AH504-245513.5-60.6325-58577480356305
