المضخة الكيماوية

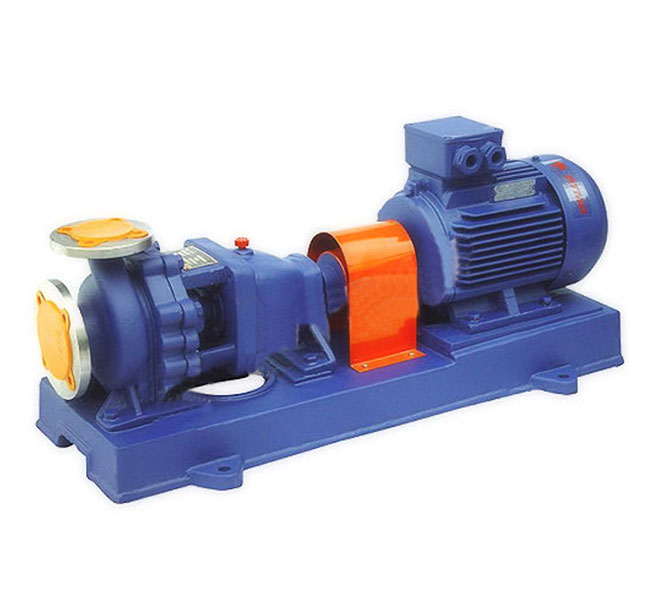

المضخة الفولاذية المقاومة للصدأ الافقية SLSAFB

Pump Type: Centrifugal

Capacity: 2-540m³/h

Head: 11.5-114m

Size: Suction DN25-DN200,Discharge DN25-DN150

Original: China


DESCRIPTION

SLSAFB type horizontal stainless steel corrosion resistant pump is a single stage single suction cantilever corrosion resistant centrifugal pump, by centrifugal impeller, single shell pump body, pump shaft, bearing, shaft seal, base and other main components.The company absorbs the characteristics of all kinds of pumps in the 1990s, adopts advanced hydraulic model, novel structure and high strength combined double end face mechanical seal, the part of the pump and transmission medium contact flow is made of stainless steel 1Cr18Ni9Ti, which has the advantages of high efficiency, energy saving, compact structure, stable performance and reliable use.


APPLICATIONS

SLSAFB type horizontal stainless steel corrosion resistant pump this pump is suitable for conveying not containing solid particles and corrosive liquid, strong acid, strong alkali, ethanol, bleach, photographic liquid, nitric acid, hydrochloric acid, hydrofluoric acid, acetic acid, sodium hydroxide, acetone, four oxygen ethane, seawater and brine etc..

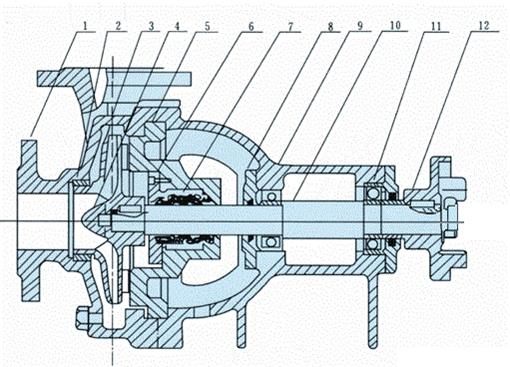

CONSTRUCTION DRAWING

SLSAFB Stainless Steel Pump

1. Cover Plate  2. Seal Ring 3. Impeller  4. Nut  5. Frame Plate  6. Seal Gland 7. Seal  8. Bearing Gland  9. Bearing House  10. Shaft  11. Bearing  12. Coupling


PERFORMANCE PARAMETERS

TypeCapacity/Q(m3/h)Head  (m)Speed/n(r/min)Max Efficiency η(%)Max Power (kW)Size(mm)
SuctionDischarge
SLSAFB252-6.412.5-4429603142525
SLSAFB404.1-8.512-70296045114032
SLSAFB507.9-17.312-114296062305040
SLSAFB6514.8-3412-112296067376550
SLSAFB8028.8-7011.5-107296068378065
SLSAFB10068.4-13017.5-1042960755510080
SLSAFB150118.8-226.817.2-100296075132150125
SLSAFB200198-54013-62296080132200150
